-17%
,

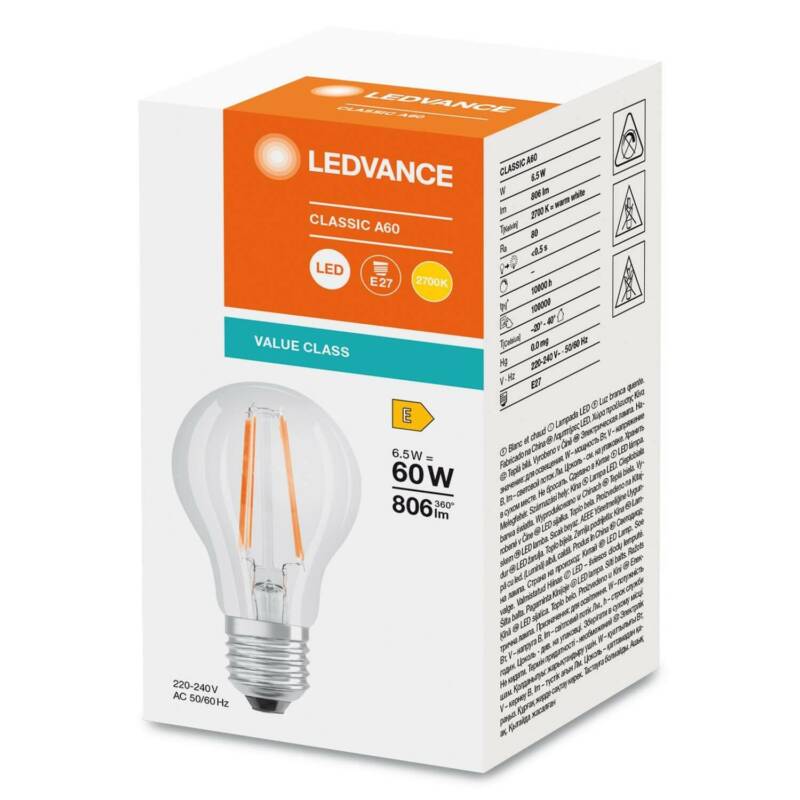

LED Classic A 60 Filament V 6.5W 827 Clear E27

LEDVANCE

Product benefits

  • Lower energy consumption than incandescent or halogen lamps
  • Can be easily fitted instead of ordinary light bulbs

Areas of application

  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only

Product features

  • LED alternative to conventional lamps
  • Not dimmable
  • Good color rendering (Ra ≥ 80) and color stability throughout the life of the lamp



5,00 € 6,00 €

Technical data

Electrical data

Nominal wattage 6.5 W
Construction wattage 6.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 38 mA
Type of current AC
Inrush current 0.1 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 789
Max. lamp number on MCB B16 A 1263
Total harmonic distortion 90 %
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Luminous efficacy 124 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) WARM White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 105.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 31.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 70 °C

Lifespan

Lifespan L70/B50 at 25 °C 10000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED CLA60 6.5W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 105.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0.380
Chromaticity coordinate y 0.380
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.5
LED light source replaces a fluorescent light source No
EPREL ID 1361317
Model number AC45208
SKU: AC452080155-2 Categories: , Tags: , , , ,
