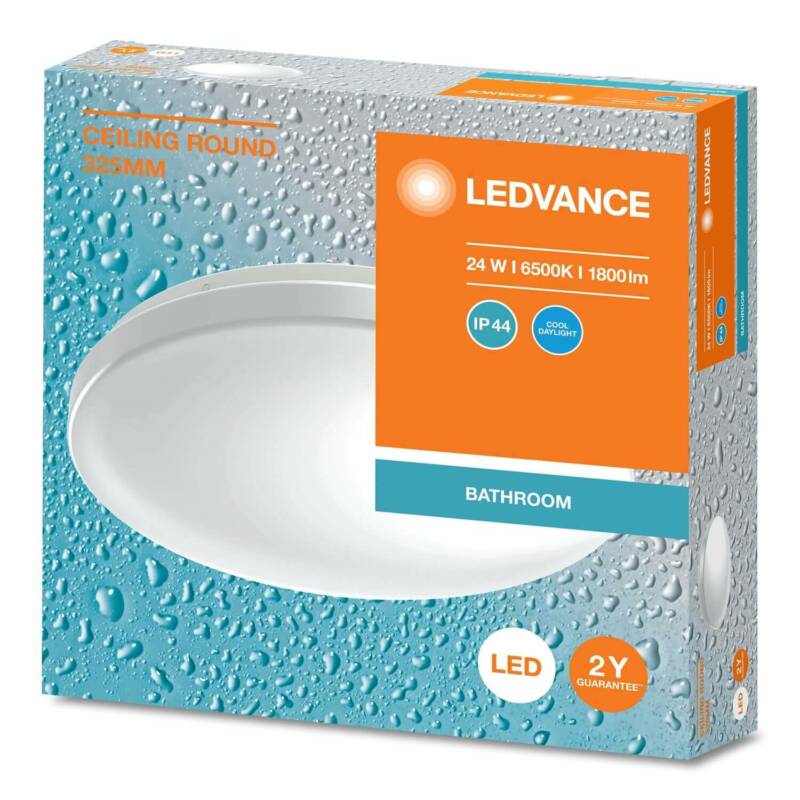

SURFACE CIRCULAR 325 865
TECHNICAL DATA
Electrical data
Nominal wattage 24.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 190 mA
Inrush current 15.0 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 30
Max. number of luminaires per miniature circuit breaker C10 25
Max. number of luminaires per miniature circuit breaker C16 41
Power factor λ > 0.5
Total harmonic distortion < 120 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 1920 lm
Luminous efficacy 80 lm/W
Color temperature 6500 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
42,00 € 50,00 €
Product benefits
- Easy adjustment of sensor range, daylight detection and hold time
- Indoor luminaire with high luminous efficacy
- Energy savings of up to 55 % compared to luminaires that use CFL
- Easy and quick installation
- Very homogenous light
- 3 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- High frequency sensor for daylight and motion detection
- Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
- Impact resistance: IK03
- Metal housing, PMMA cover
- Ambient temperature in operation: -20…+40 °C
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- Replacement cover optional available
