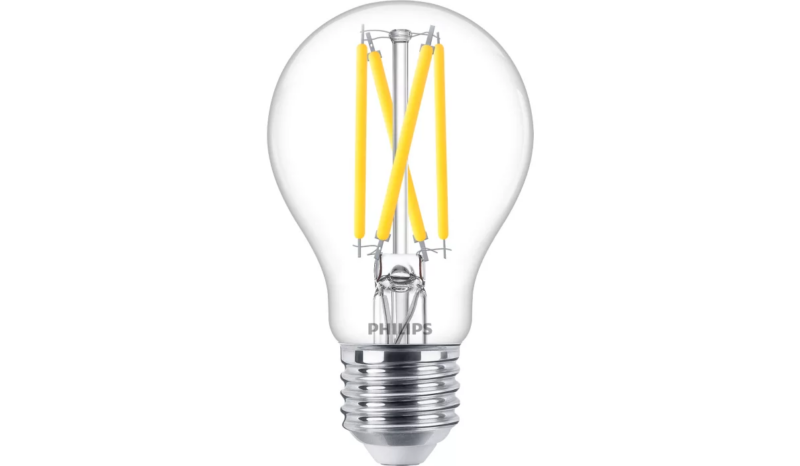

MAS LEDBulbDT5.9-60W E27 CRI95A60CL G
,

MAS LEDBulbDT5.9-60W E27 CRI95A60CL G

MAS LEDBulbDT5.9-60W E27 CRI95A60CL G

Product Description

LEDbulb, A60, 60 W, E27, 2200 K, 2700 K, 806 lm, CRI 95, 25000 hour(s), Glass, 136 lm/W, EEL D, PF 0.6, Beam angle 300 degree(s), RG1, IP20, SVM 0.4, PstLM 0.9

Order code: 929003798682

Full order code: 8720169311657

7.50 €

Specifications

General Information

  • Cap-Base
    E27
  • Nominal lifetime
    25,000 hour(s)
  • Switching Cycle
    20,000
  • Lighting Technology
    LEDbulb
  • Flux measurement reference
    Sphere
  • Warranty period
    5 years

Light Technical

  • Color Code
    922-927 [CCT of 2200K-2700K]
  • Beam Angle (Nom)
    300 degree(s)
  • Luminous Flux
    806 lm
  • Color Designation
    Warm Glow(WG)
  • Correlated Color Temperature (Nom)
    2200 K2700 K
  • Luminous Efficacy (rated) (Nom)
    136 lm/W
  • Color Consistency
    <6
  • Color rendering index (CRI)
    95
  • LLMF At End Of Nominal Lifetime (Nom)
    70 %
  • Photobiological safety according to EN 62471
    RG1

Operating and Electrical

  • Input Frequency
    50 to 60 Hz
  • Power Consumption
    5.9 W
  • Lamp Current (Nom)
    40 mA
  • Wattage Equivalent
    60 W
  • Starting Time (Nom)
    0.5 s
  • Warm-up time to 60% light
    0.5 s
  • Power Factor (Fraction)
    0.6
  • Voltage (Nom)
    220-240 V

Temperature

  • T-Case Maximum (Nom)
    70 °C

Controls and Dimming

  • Dimmable
    Only with specific dimmers

Mechanical and Housing

  • Bulb Finish
    Clear
  • Bulb Material
    Glass
  • Bulb Shape
    A60
  • Net Weight (Piece)
    0.032 kg

Approval and Application

  • Energy Efficiency Class
    D
  • Energy Consumption kWh/1000 h
    6 kWh
  • EPREL Registration Number
    1969959
  • CE mark
    Yes
  • EU RoHS compliant
    Yes
  • EyeComfort
    Yes
  • Flickering value (PstLM) – Flickering value as per EN 61000-3-3
    0.9
  • Stroboscopic effect visibility measure (SVM)
    0.4
  • Ambient temperature range
    -20 to +45 °C

Application Conditions

  • can it be used in closed luminaires
    No
  • Wireless Technology
    Not applicable

Product Data

  • Order product name
    MAS LEDBulbDT5.9-60W E27 CRI95A60CL G
  • Full product name
    MAS LEDBulbDT5.9-60W E27 CRI95A60CL G
  • Full product code
    872016931165700
  • Order code
    929003798682
  • Material Nr. (12NC)
    929003798682
  • Numerator – Quantity Per Pack
    1
  • EAN/UPC – Product/Case
    8720169311657
  • Numerator – Packs per outer box
    10
  • EAN/UPC – Case
    8720169311664

Installation diagrams

  • Dimension Drawing (with table) - MAS LEDBulbDT5.9-60W E27 CRI95A60CL G

    Dimension Drawing (with table) – MAS LEDBulbDT5.9-60W E27 CRI95A60CL G

  • E27
