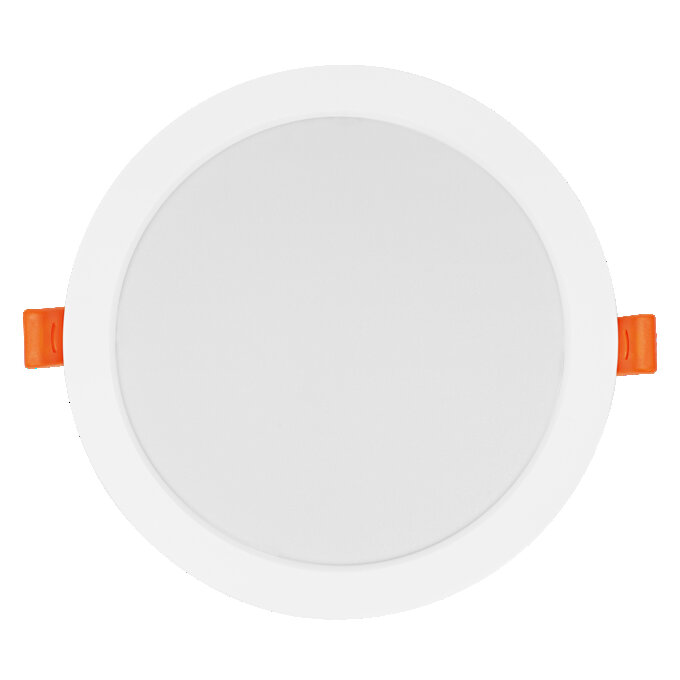

LED Panel 12W RGB and tunable white
35.00 €
| Nominal wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 85.000 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 1500 µs |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 1250 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |

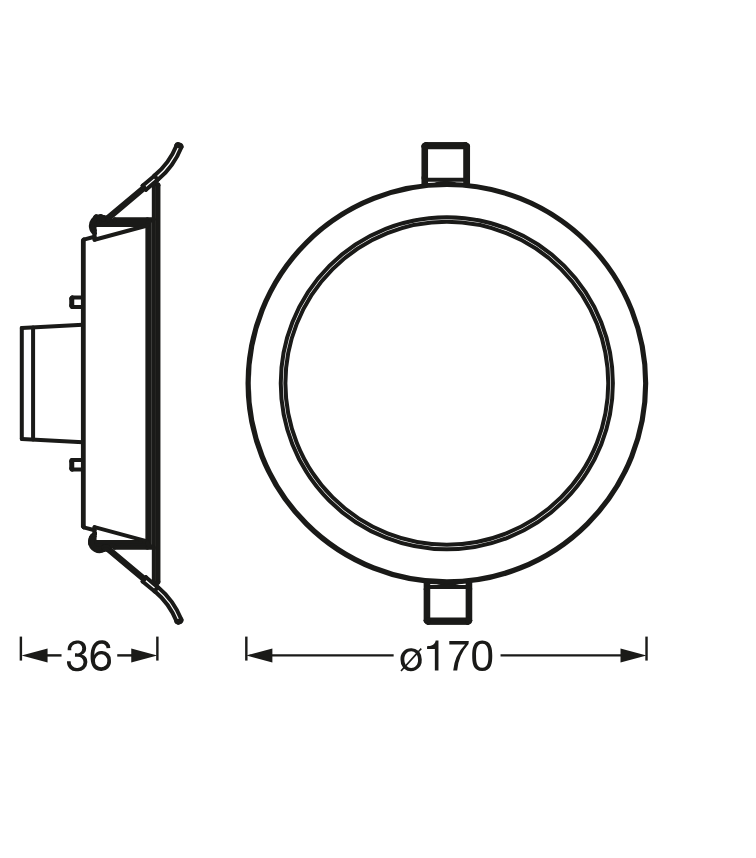

| Diameter | 170.00 mm |
| Height | 58.00 mm |
| Product weight | 168.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polyprophylene (PP)|polyamid |
| Cover material | Polystyrene (PS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 145 mm |
| Mounting depth | 70,0 mm |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 15000 |
