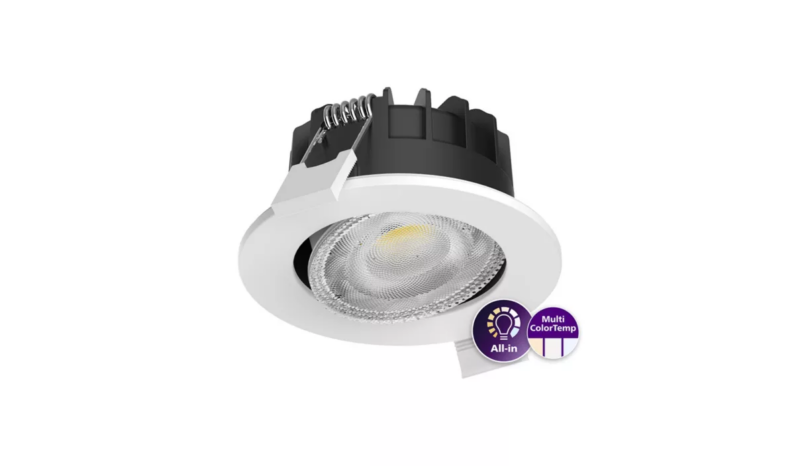

LED Downlight 6W ALL IN ONE white CCT DIMMABLE

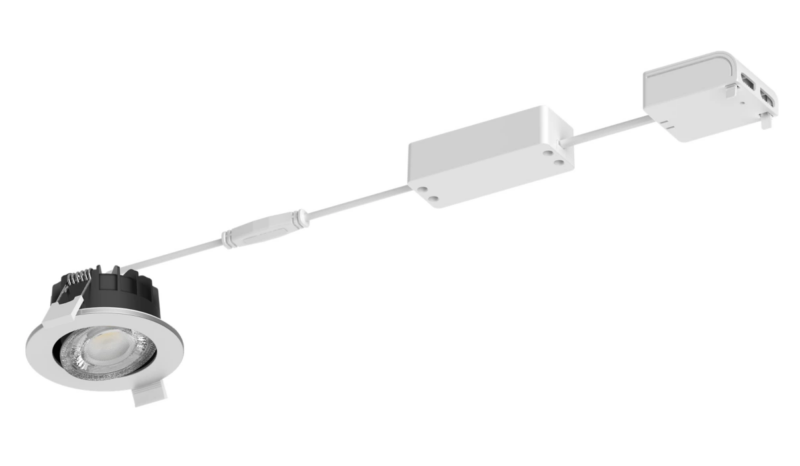

LED Downlight 6W ALL IN ONE white CCT DIMMABLE - Image 2
LED Downlight 6W ALL IN ONE white CCT DIMMABLE - Image 3
, , , , ,

LED Downlight 6W ALL IN ONE white CCT DIMMABLE

RS071B 5S/827_30_40 60D PSR PI6 IP65 WH

Adjustable, Metal–Plastic, White, Power supply unit (On/Off), All-in, Multi Color Temperature, 550 lm, 6 W, 91 lm/W, 2700 K, 3000 K, 4000 K, (IEC3000K, 0.44, 0.403) 5SDCM, Beam angle 60°, Clear, Polycarbonate, IP20/65 | Finger-protected; Dust penetration-protected, jet-proof, IK03 | 0.35 J reinforced, Safety class II, Push-in connector 3-pole

Order code: 929003322702

Full order code: 8720169208865

25.00 €

Specifications

General Information

  • Light source replaceable
    No
  • Number of gear units
    1 unit
  • Driver included
    Yes
  • Lighting Technology
    LED
  • Value ladder
    Value
  • Warranty period
    3 years

Light Technical

  • Luminous Flux
    550 lm
  • Correlated Color Temperature (Nom)
    2700 K3000 K4000 K
  • Luminous Efficacy (rated) (Nom)
    91 lm/W
  • Color rendering index (CRI)
    80
  • Light source color
    2700/3000/4000K
  • Optic type
    Beam angle 60°
  • Luminaire light beam spread
    60°
  • Unified glare rating CEN
    23
  • Photobiological safety according to EN 62471
    RG1
  • All-in Type
    All-in, Multi Color Temperature

Operating and Electrical

  • Input Voltage
    220 to 240 V
  • Line Frequency
    50 or 60 Hz
  • Input Frequency
    50 or 60 Hz
  • Inrush current
    1.4 A
  • Inrush time
    0.2 ms
  • Power Consumption
    6 W
  • Power Factor (Fraction)
    0.9
  • Connection
    Push-in connector 3-pole
  • Cable
    Cable 0.75 m without plug
  • Number of products on MCB of 16 A type B
    240
  • Suitable for random switching
    No
  • Protection class IEC
    Safety class II
  • Total harmonic distortion
    20 %

Controls and Dimming

  • Dimmable
    Yes
  • Driver/power unit/transformer
    Power supply unit (On/Off)
  • Control interface
    Phase-cut dim
  • Constant light output
    No

Mechanical and Housing

  • Housing Material
    Metal–Plastic
  • Reflector material
    –
  • Optical cover material
    Polycarbonate
  • Fixation material
    Steel
  • Housing Color
    White
  • Optical cover finish
    Clear
  • Overall height
    43 mm
  • Overall diameter
    89 mm
  • Ingress protection code
    IP20/65 [Finger-protected; Dust penetration-protected, jet-proof]
  • Mech. impact protection code
    IK03 [0.35 J reinforced]
  • Mounting
    Recessed
  • Net Weight (Piece)
    0.215 kg

Approval and Application

  • Glow-wire test
    Temperature 650 °C, duration 30 s
  • Flammability mark
    For mounting on normally flammable surfaces
  • CE mark
    Yes
  • EU RoHS compliant
    Yes
  • Flickering value (PstLM) – Flickering value as per EN 61000-3-3
    0.1
  • Stroboscopic effect visibility measure (SVM)
    0.4
  • Ambient temperature range
    -20 to +40 °C

Initial Performance (IEC Compliant)

  • Luminous flux tolerance
    -0%,+20%
  • Initial chromaticity
    (IEC3000K, 0.44, 0.403) 5SDCM
  • Power consumption tolerance
    -10%,+5%

Over Time Performance (IEC Compliant)

  • Driver failure rate at 5000 h
    1.2 %
  • Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h
    L65

Sustainability Data

  • Repair class
    Repair Class D, this product is not designed to be repaired.
  • Non-virgin material ratio of the packaging
    Cardboard > 80% recycled Plastic >35% recycled
  • Packaging Recyclable content ratio
    Cardboard recycling rate > 80%Plastic recycling rate > 40%
  • Packaging Material
    Cardboard Plastic

Product Data

  • Order product name
    RS071B 5S/827_30_40 60D PSR PI6 IP65 WH
  • Full product name
    RS071B 5S/827_30_40 60D PSR PI6 IP65 WH
  • Full product code
    872016920886500
  • Order code
    929003322702
  • Material Nr. (12NC)
    929003322702
  • Numerator – Quantity Per Pack
    1
  • EAN/UPC – Product/Case
    8720169208865
  • Numerator – Packs per outer box
    12
  • EAN/UPC – Case
    8720169208872
