Product benefits
- 10 years of product guarantee

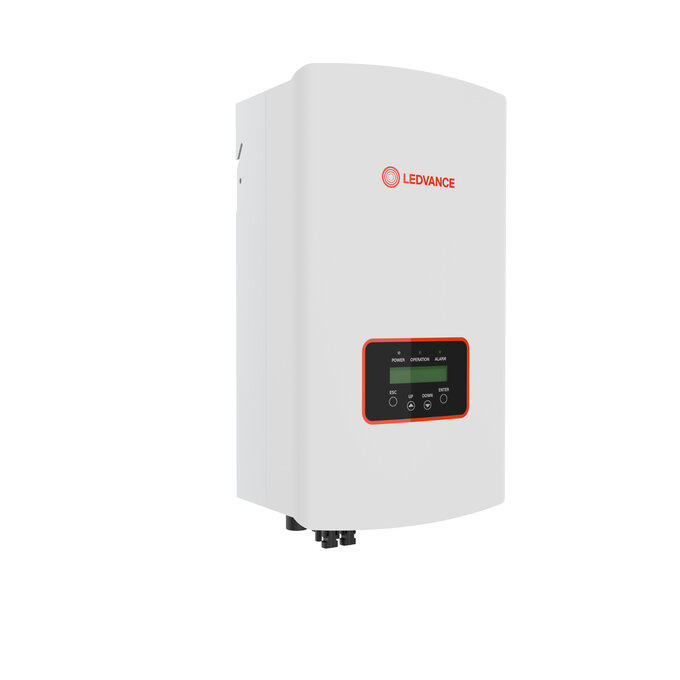

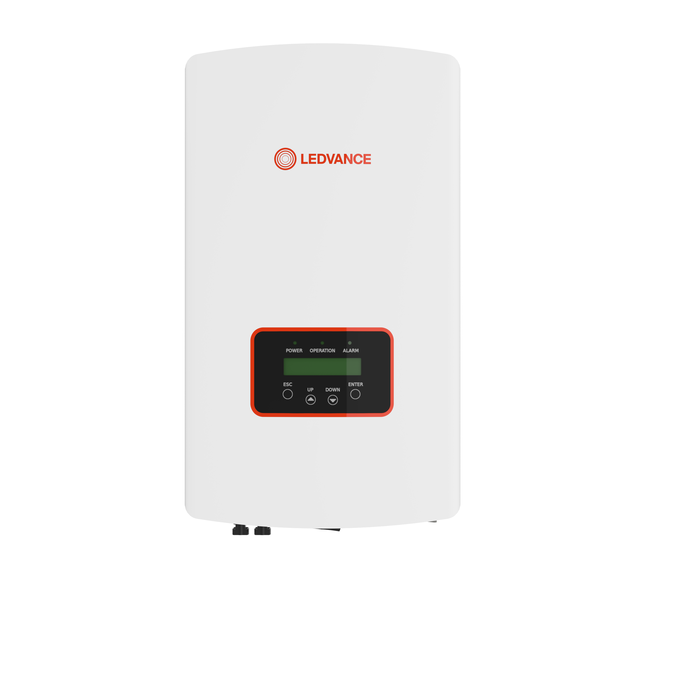

- Built-in LCD display
- Low startup voltage starting from 60 V
- AFCI protection, proactively reduces fire risk
- Level II surge protection on AC and DC side
Areas of application
- Residential installations
Product features
- Cooling by natural convection

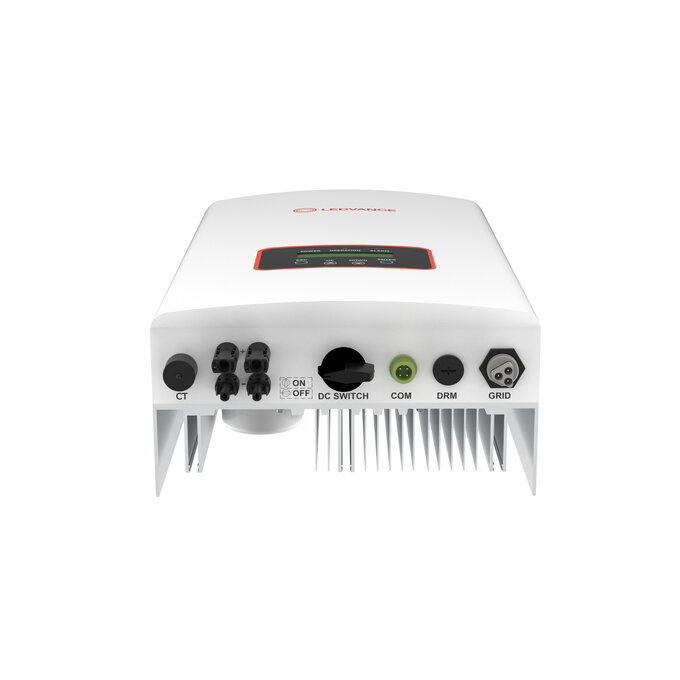

- Integrated DC switch
- Protection rating: IP66
- Original Stäubli MC4 connectors
Equipment / Accessories
- Mounting bracket included
- Data logger included
- AC connector included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- RJ45 connector included
- Fastening screws included
Electrical data
| Output phases | Single phase |
| Max. input power DC | 9 kW |
| Input voltage DC | 330 V |
| MPP voltage | 90 – 520 V |
| Max. input current DC | 14 A |
| Max. input current DC per string input | 14 A |
| Max. input current DC per MPP tracker | 14 A |
| Max. short circuit current per MPPT | 22 A |
| Number of independent MPPT inputs | 2 |
| String connections per MPPT input | 1 |
| Nominal output power AC | 6 kW |
| Power consumption | <1 W |
Dimensions & Weight
| Length | 310 mm |
| Width | 160 mm |
| Height | 543 mm |
| Product weight | 11000.000 g |
Additional product data
| Integrated DC switch | Yes |
| Connection DC for battery | No |
| Suitable for emergency power | No |
| Charging controller integrated | No |
| With data logging | Yes |
| Wireless | Yes |
| Display | Standard |
| Ethernet | Yes |
| Integrated transformer | No |
| Type of connection | Staubli MC4 |
| Temperature range in operation | -25…+60 °C |
| Ambient temperature range | -25…+60 °C |
| Outdoor application | No |
| Type of protection | IP66 |
| Product color | White |
Efficiency
| Maximum efficiency | 97.70 % |
| European efficiency | 97.10 % |
