Bulbs, Light Sources

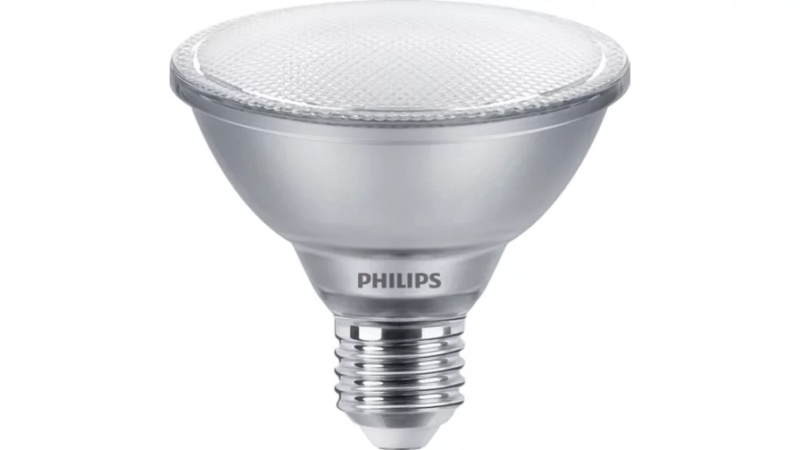

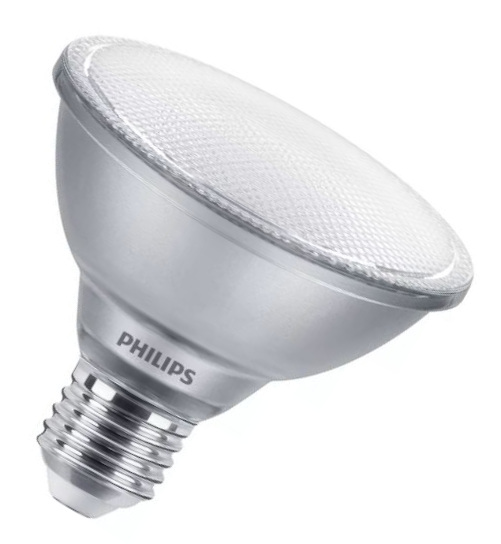

MAS LEDspot VLE D 9.5-75W 940 PAR30S 25D
Philips MASTER Value, LEDspot, PAR30S, 75 W, E27, 4000 K, 820 lm, CRI 90, 25000 hour(s), Glass
MASTER Value, LEDspot, PAR30S, 75 W, E27, 4000 K, 820 lm, CRI 90, 25000 hour(s), Glass, 86 lm/W, EEL F, PF 0.7, Beam angle 25 degree(s), RG1, IP20, SVM 0.4, PstLM 1
Order code:Â 929003485602
Full order code:Â 8719514443242
21.00 €
Specifications
General Information
- Cap-Base
E27
- Nominal lifetime
25,000 hour(s)
- Switching Cycle
50,000
- Lighting Technology
LEDspot
- Flux measurement reference
Narrow Cone
- Warranty period
5 years
Light Technical
- Color Code
940 [CCT of 4000K]
- Beam Angle (Nom)
25 degree(s)
- Luminous Flux
820 lm
- Luminous Intensity (Nom)
3,000 cd
- Color Designation
Cool White (CW)
- Correlated Color Temperature (Nom)
4000 K
- Luminous Efficacy (rated) (Nom)
86 lm/W
- Color Consistency
<6
- Color rendering index (CRI)
90
- LLMF At End Of Nominal Lifetime (Nom)
70 %
- Luminous Flux in 90° Cone (Rated)
820 lm
- Photobiological safety according to EN 62471
RG1
Operating and Electrical
- Line Frequency
50 to 60 Hz
- Input Frequency
50 to 60 Hz
- Power Consumption
9.5 W
- Lamp Current (Nom)
60 mA
- Wattage Equivalent
75 W
- Starting Time (Nom)
0.5 s
- Warm-up time to 60% light
0.5 s
- Power Factor (Fraction)
0.7
- Voltage (Nom)
220-240 V
Temperature
- T-Case Maximum (Nom)
80 °C
Controls and Dimming
- Dimmable
Only with specific dimmers
Mechanical and Housing
- Bulb Finish
Clear
- Bulb Material
Glass
- Bulb Shape
PAR30S
- Net Weight (Piece)
0.160 kg
Approval and Application
- Energy Efficiency Class
F
- Suitable For Accent Lighting
Yes
- Energy Consumption kWh/1000 h
10 kWh
- EPREL Registration Number
1121751
- CE mark
Yes
- EU RoHS compliant
Yes
- EyeComfort
Yes
- Flickering value (PstLM) – Flickering value as per EN 61000-3-3
1
- Stroboscopic effect visibility measure (SVM)
0.4
- Ambient temperature range
-20 to +45 °C
Application Conditions
- can it be used in closed luminaires
No
- Wireless Technology
Not applicable
Product Data
- Order product name
MAS LEDspot VLE D 9.5-75W 940 PAR30S 25D
- Full product name
MAS LEDspot VLE D 9.5-75W 940 PAR30S 25D
- Full product code
871951444324200
- Order code
929003485602
- Material Nr. (12NC)
929003485602
- Numerator – Quantity Per Pack
1
- EAN/UPC – Product/Case
8719514443242
- Numerator – Packs per outer box
6
- EAN/UPC – Case
8719514443259

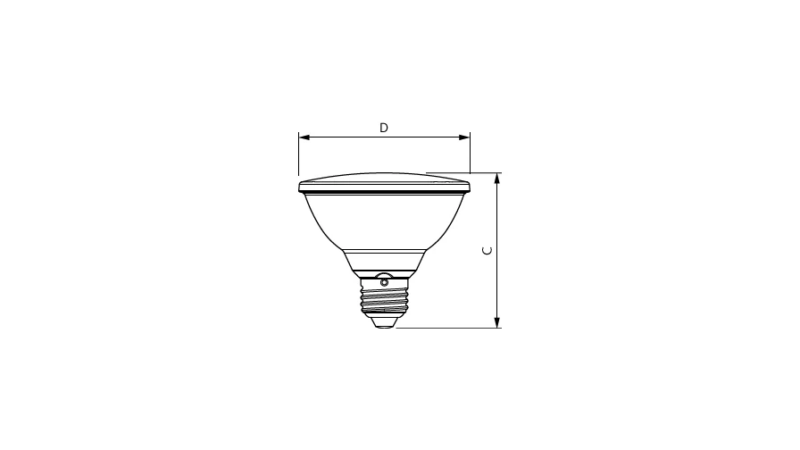

Installation diagrams
